Filter replacement

1. Open the glove box and remove the support strap (1).

2. With the glove box open, remove the stoppers by turning them counterclockwise


2. With the glove box open, remove the stoppers by turning them counterclockwise on both sides.

3. Remove the climate control air filter cover while pressing the lock on the


3. Remove the climate control air filter cover while pressing the lock on the right of the cover.

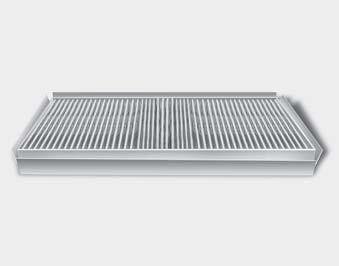

4. Replace the climate control air filter.


4. Replace the climate control air filter.

5. Reassemble in the reverse order of disassembly.

NOTICE

When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
